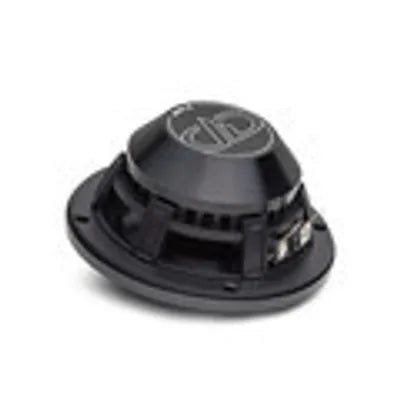

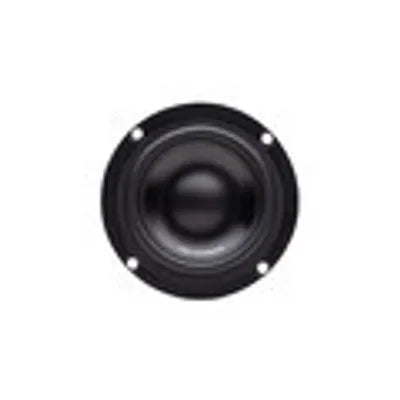

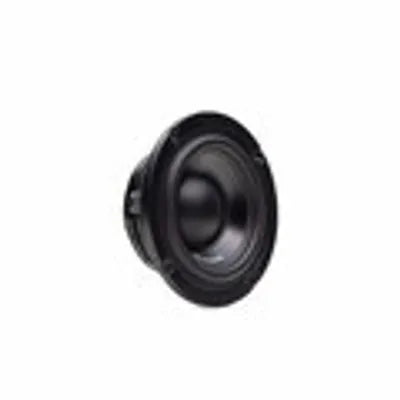

The AM-3 incorporates many of the same “state of the art” design elements as its larger counterpart, the AW-6.5a. The open design cast aluminum basket provides an ultra rigid support system while also functioning as an additional heatsink and shorting ring. A high-energy double neodymium, shorting ring equipped motor is perfectly matched to the 1” copper clad aluminum wire, Kapton former voice coil, providing balanced output efficiency and power handling. An aluminum cone with a butyl dustcap offers the neutral sound of a pulp cone with the precision only an ultra rigid cone can deliver. This combination achieves wide bandwidth and efficient energy transfer to the air.
Features
Aluminum Cone
Cast Basket
Acoustically Damping Butyl Dustcap
Butyl Surround
Double Neo Motor w/ Shorting Ring
1” CCA Voice Coil w/ Kapton Former
Laser Etched Back Plate
Machined Aluminum Grill w/ HB Geodesic Pattern
Compatible w/ Optional CX02 2-Way Passive Crossover
Features
Aluminum Cone
Cast Basket
Acoustically Damping Butyl Dustcap
Butyl Surround
Double Neo Motor w/ Shorting Ring
1” CCA Voice Coil w/ Kapton Former
Laser Etched Back Plate
Machined Aluminum Grill w/ HB Geodesic Pattern
Compatible w/ Optional CX02 2-Way Passive Crossover
Speaker Size (In):3
Watts RMS:50
Watts Peak:125
Impedance:S4
VCD (In):1
Frequency Response (Hz):100 - 22k
Fs (Hz):100
Qms:4.476
Qes:0.743
Qts:0.637
Vas:.835
dBSPL:82.4
Mounting Diameter (In):3.03 (77mm)
Mounting Depth (In):1.45. (37mm)
Watts RMS:50
Watts Peak:125
Impedance:S4
VCD (In):1
Frequency Response (Hz):100 - 22k
Fs (Hz):100
Qms:4.476
Qes:0.743
Qts:0.637
Vas:.835
dBSPL:82.4
Mounting Diameter (In):3.03 (77mm)
Mounting Depth (In):1.45. (37mm)
| Storlek på midbas | 3" |
| Effekttålighet RMS | 50W |
| Effekttålighet MAX | 125W |
| Frekvensområde | (Hz):100 - 22k |
| Impedans | S4 |
| Känslighet | 82.4 |
| Inbyggnadsdjup | 37mm |
| Monteringshål | 77mm |
