Audiocontrol  |  Art.nr ACM-4.300

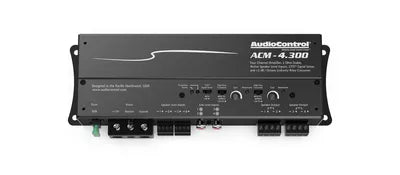

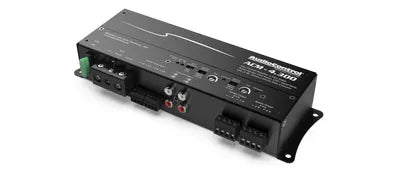

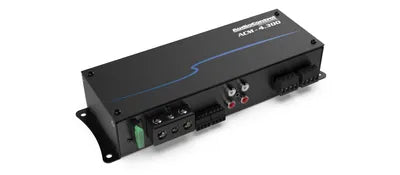

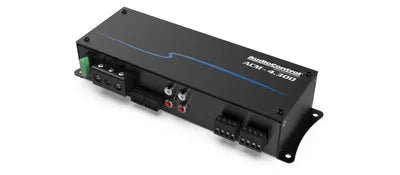

Audiocontrol ACM-4.300

3 495 kr 3 995 kr

Audiocontrol ACM-4.300 är slut i lager. Kontakta oss för tillgänglighet och leveranstid!

Frakt
  • Fri frakt över 1000kr
  • Snabb leverans

Har du frågor? Tveka inte att höra av dig till oss!

ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power, and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation. Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.



Features:

  • 4 x 75 watts @ 2 ohms
  • 4 x 50 watts @ 4 ohms
  • 150 watts @ 4 ohms bridged
  • GTOTM Signal Sense
  • Active speaker-level inputs for OEM integration
  • RCA Line Inputs
  • Linkwitz-Riley Crossover
  • Reversible Cover Plate
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)


Specifications:

Inputs

Preamp Inputs: 4 Balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 4
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs

Rated Continuous (RMS) Power at 14.4V:
4 Ω – 50 W x 4 RMS
2 Ω – 75 W x 4 RMS
Bridged 4 Ω – 150 W RMS

Performance:

Frequency Response: 10 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.01%
Power / Ground Wire Gauge: 10 to 4 AWG wire
Fuse Rating: 1 x 30 A
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
PFM Subsonic Filter: 32 Hz

Weights & Dimensions:

Dimensions: 9.4″W x 3.0″D x 1.75″H
Weight: 2.2 lbs. (0.98 kg)

What's In the Box:
ACM-4.300, Speaker Connectors, Fuse, Manual, Warranty

Audiocontrol

Audiocontrol ACM-4.300

3 495 kr 3 995 kr

ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power, and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation. Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.



Features:

  • 4 x 75 watts @ 2 ohms
  • 4 x 50 watts @ 4 ohms
  • 150 watts @ 4 ohms bridged
  • GTOTM Signal Sense
  • Active speaker-level inputs for OEM integration
  • RCA Line Inputs
  • Linkwitz-Riley Crossover
  • Reversible Cover Plate
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)


Specifications:

Inputs

Preamp Inputs: 4 Balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 4
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs

Rated Continuous (RMS) Power at 14.4V:
4 Ω – 50 W x 4 RMS
2 Ω – 75 W x 4 RMS
Bridged 4 Ω – 150 W RMS

Performance:

Frequency Response: 10 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.01%
Power / Ground Wire Gauge: 10 to 4 AWG wire
Fuse Rating: 1 x 30 A
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
PFM Subsonic Filter: 32 Hz

Weights & Dimensions:

Dimensions: 9.4″W x 3.0″D x 1.75″H
Weight: 2.2 lbs. (0.98 kg)

What's In the Box:
ACM-4.300, Speaker Connectors, Fuse, Manual, Warranty
