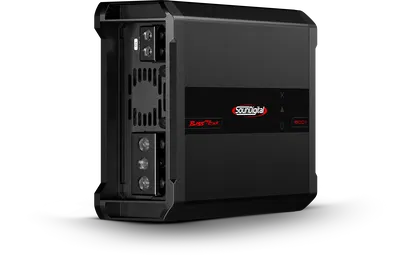

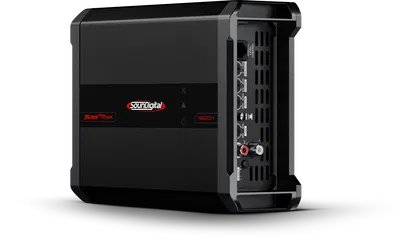

SounDigital 1600.1 BASSTRONIK - 1 Ohm

The Basstronik series is designed for more powerful and direct bass reproduction.

The new series includes, among other things, a fixed adjustable low-pass and subsonic filter, which makes it significantly easier to control the crossover frequency for the bass range.

With the switch-off button, the amplifier can still be used for large speaker systems in full-range operation. The SounDigital amplifiers benefit from high power in a compact space, are easy to install, simple to use, and fit anywhere.

Thermal problems are unknown to these amplifiers the well-thought-out cooling principle and the extremely high efficiency prevent overheating during music operation.


Power @ 4Ω: 1 X 650 WRMS
Power @ 2Ω: 1 X 1000 WRMS
Power @ 1Ω: 1 X 1600 WRMS

Frequency Response (-3dB): 5Hz ~ 20kHz
Subsonic Filter: 5Hz ~ 40Hz
Low Pass Filter (12dB/octave): 50Hz ~ 250Hz
Bass Boost: 0dB ~ 10dB @ 35Hz
Operating Voltage: 10V ~ 16V
Signal-Noise Ratio: 90.2dB
Current Draw (Music): 74.7A
Current Draw (Max): 149.3A
Total Efficiency: 85%
Damping Factor: 2000
Recommended Fuse (Music): 80A
Recommended Battery: 90Ah
Width: 136.2 / 5.4 in
Length: 180.1mm / 7.1 in
