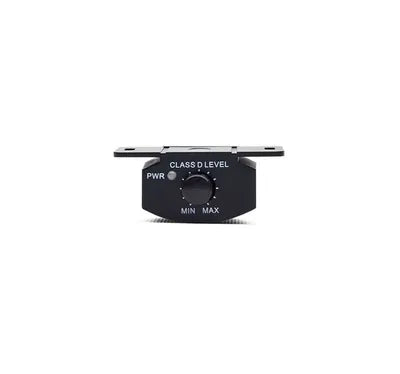

The Class D RL-LA600.1 efficiently delivers the power to drive a DD AUDIO loaded enclosure or DD REDLINE multi subwoofer setups. Bandpass crossovers and bass boost capabilities allow precise tuning of the sub stage while the included remote control knob adds the ability to make on the fly adjustments of the subwoofer volume.
When paired with a DD AUDIO SC2 or SC4 active line output converter, the REDLINE LA Series amplifiers provide a seamless factory integrated amplification solution.

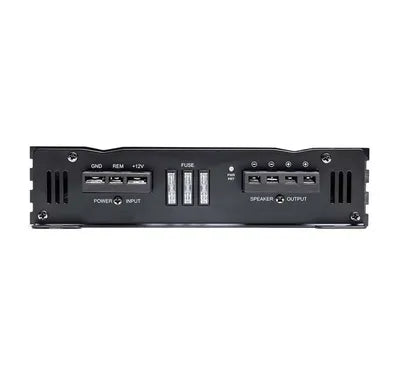

The REDLINE LA Series amplifiers utilize spade terminals for clean and secure connections on both the power input and speaker outputs.
When paired with a DD AUDIO SC2 or SC4 active line output converter, the REDLINE LA Series amplifiers provide a seamless factory integrated amplification solution.
The REDLINE LA Series amplifiers utilize spade terminals for clean and secure connections on both the power input and speaker outputs.
Operating Voltage:9 - 16
Test Voltage:14.4
Output Channel(s):1
Continuous Wattage @4ohm:1 x 180
Continuous Wattage @2ohm:1 x 350
Continuous Wattage @1ohm:1 x 600
Dynamic Wattage:1200
Max Current Draw (Amps):60
RCA Input Voltage Sensitivity:6 - 0.25
RCA Input S/N: 85
THD: 0.1%
Bass Boost:6dB @ 45Hz
Frequency Response (Hz):20 - 500
Sub-Sonic Filter:10 - 50
Low-Pass Filter:32 - 300
ZVL Input:No
Pass Thru Output:No
Power Wire Gauge:Spade Terminal
Speaker Wire Gauge:Spade Terminal
Dimensions (Inches):11.75 x 8.25 x 2
Dimensions (MM):298 x 209 x 51
Test Voltage:14.4
Output Channel(s):1
Continuous Wattage @4ohm:1 x 180
Continuous Wattage @2ohm:1 x 350
Continuous Wattage @1ohm:1 x 600
Dynamic Wattage:1200
Max Current Draw (Amps):60
RCA Input Voltage Sensitivity:6 - 0.25
RCA Input S/N: 85
THD: 0.1%
Bass Boost:6dB @ 45Hz
Frequency Response (Hz):20 - 500
Sub-Sonic Filter:10 - 50
Low-Pass Filter:32 - 300
ZVL Input:No
Pass Thru Output:No
Power Wire Gauge:Spade Terminal
Speaker Wire Gauge:Spade Terminal
Dimensions (Inches):11.75 x 8.25 x 2
Dimensions (MM):298 x 209 x 51
