Phoenix Gold | Art.nr
ZDA4.8

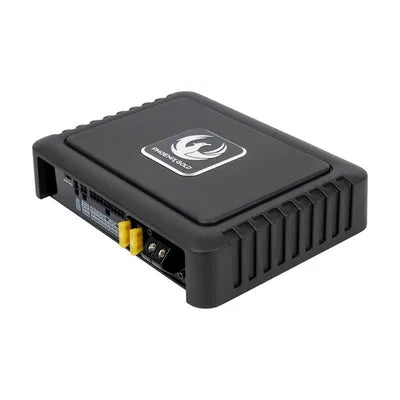

Phoenix Gold ZDA4.8
Ordinarie Pris
3 995 kr
Pris per enhet
Phoenix Gold ZDA4.8
Beräknar leveranstid...
Phoenix Gold ZDA4.8
Ordinarie Pris
3 995 kr
Pris per enhet
Phoenix Gold ZDA4.8
Hardware Specifications
| Product | ZDA4.8 |
|---|---|
| Type | DSP Amplifier |
| Amplifier Class | A/B |
| Amplified Channels | 4 |
| DSP Channels | 8 |
| Frequency Response (-3dB) | 15Hz ~ 23kHz |
| MAX Power Rating | 560W |
| RMS Power Rating (2O) | N/A |
| RMS Power Rating (4O) | 4 x 70W |
| RCA Voltage Output | 4V |
| DAC | Burr Brown PCM1681 |
| DSP Resolution | 24 Bit |
| Sampling Rate | 48kHz |
| SNR (Analogue/Digital Input) | -90dB |
| THD | 0.1% |
| Crosstalk | -60dB |
| Damping Factor | 120 |
| High-Level Input | Yes |
| Auto Turn-On | Yes |
| Input Sensitivity (High-Level) | 0.2V – 20V |
| Input Sensitivity (Low-Level) | 0.2V – 5V |
| Operating Voltage | 9V – 16V |
| Start-Stop Compatible | Yes |
| Idle Current | 1.5A |
| Current Draw (MAX) | 30A |
| Total Efficiency (4O) | 60% |
| Power Terminal | 10mm² |
| Remote (Optional) | ZDAWCT |
| Low-Level Outputs (RCA) | 8 |
| Analogue Inputs | 6 x High-Level / 2 x Low-Level |
| Digital Inputs | Bluetooth / Coaxial / USB / SPDIF |
| Remote Input | Yes |
| Remote Output | Yes |
| PC Connection Input | USB-B |
| APP Control (Coming Soon) | Yes |
| Dimensions (LxWxH) | 211 x 160 x 47mm |
