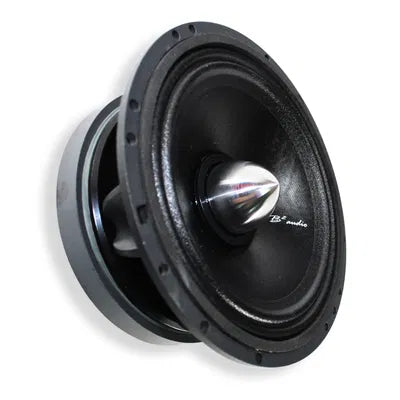

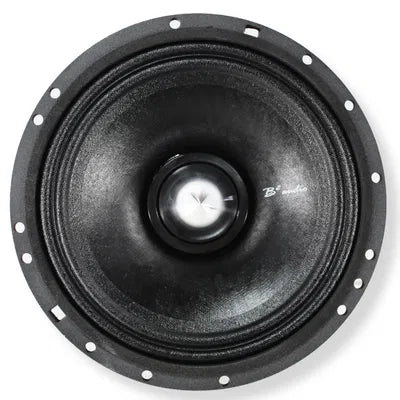

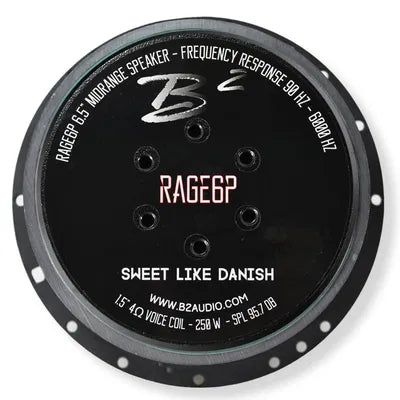

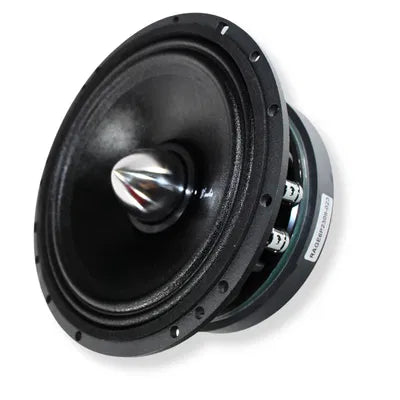

B2 RAGE6P

Säljes parvis!

PRO audio, The RAGE P series has been evolved over more than a decade, refined from each generation with one goal in mind. Provide the cleanest and loudest sound within its range. Over the years, the RAGE P’s have been featured in world class builds and has become a people’s favorite for those wanting more than the ordinary.

RMS Power Handling: 120W
Maximum Power Handling: 250W
Nominal Impedance: 4-Ohm
Voice Coil Diameter: 1.5" (38.6 mm)
Magnet Weight: 30 Oz
Frequency Response: 90 6000 Hz
Sensitivity: 95.7 dB
Nominal Chassis Diameter: 6.5" (165 mm)
Resonance Frequency: 94 Hz
Voice Coil Material: CCAR

Thiele & Small Parameters:
Free Air Resonance (Fs): 94 Hz
Resistance (Re): 3.4-Ohm
Mechanical Factor (Qms): 13.5
Electrical Factor (Qes): 0.65
Total Factor (Qts): 0.6
Equivalent Volume (Vas): 5.4 L
L Efficiency: 0.7%
BL Factor (BL): 7 T/m
Moving Mass (Mms): 14 grams
Excursion Max (Xmax): 3.5 mm
Sd (cm^2) 145 cm^2
EBP: 144

Measurements:
Overall Diameter: 6.5" (165 mm)
Front Mount Baffle Cutout: 5.71" (145 mm)
Mounting Depth: 6.11" (155 mm)
Overall Depth: 2.71" (69 mm)

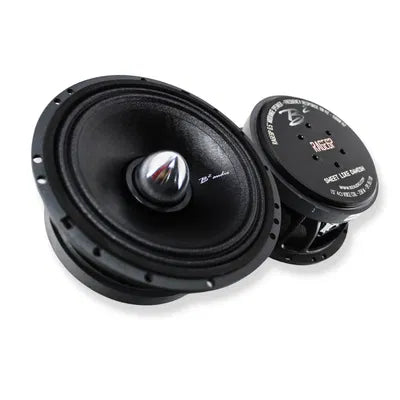

Sold as: Pair
