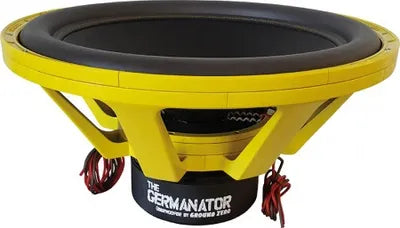

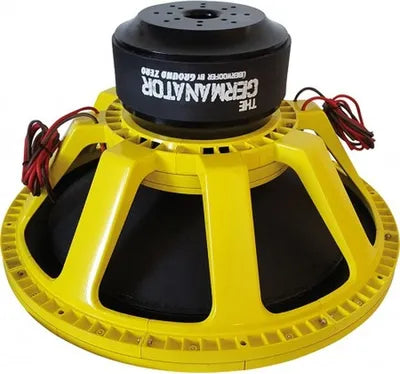

84 cm / 33″ high power subwoofer with aluminum cast basket and pressed paper cone
33″ high power subwoofer
Klippel® optimized
Fiber reinforced paper cone
Long stroke foam surround
Solid aluminum cast basket
160 mm / 6.3″ flat wire voice coil
5-layer progressive spider
IMPP dust cap
33″ high power subwoofer
Klippel® optimized
Fiber reinforced paper cone
Long stroke foam surround
Solid aluminum cast basket
160 mm / 6.3″ flat wire voice coil
5-layer progressive spider
IMPP dust cap
Model
High-Power SPL Subwoofer
Diameter
84 cm / 33″
Power handling (RMS/SPL)
15000 / 20000 Watts
Impedanz
2x 1 Ohms
Effizienz
94 dB
Power recommendation
10000 – 20000 Watts
Voice coil
160 mm / 6.3″ flat wire
Cone
Reinforced paper
Max. Excursion (Xmax)
70 mm
Einbautiefe
420 mm
Resonance frequency (Fs)
24.4 Hz
Dämpfungsgrad (Qts)
0.513
Äquiv. Luftvolumen (Vas)
53.4 L.
High-Power SPL Subwoofer
Diameter
84 cm / 33″
Power handling (RMS/SPL)
15000 / 20000 Watts
Impedanz
2x 1 Ohms
Effizienz
94 dB
Power recommendation
10000 – 20000 Watts
Voice coil
160 mm / 6.3″ flat wire
Cone
Reinforced paper
Max. Excursion (Xmax)
70 mm
Einbautiefe
420 mm
Resonance frequency (Fs)
24.4 Hz
Dämpfungsgrad (Qts)
0.513
Äquiv. Luftvolumen (Vas)
53.4 L.
