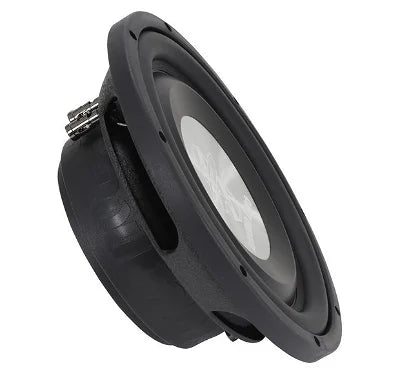

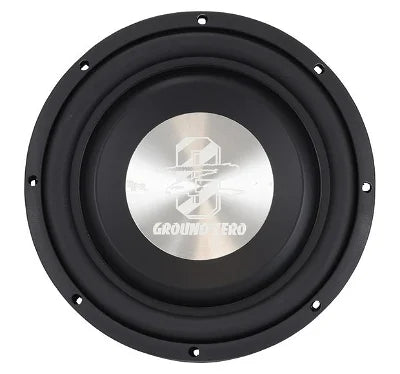

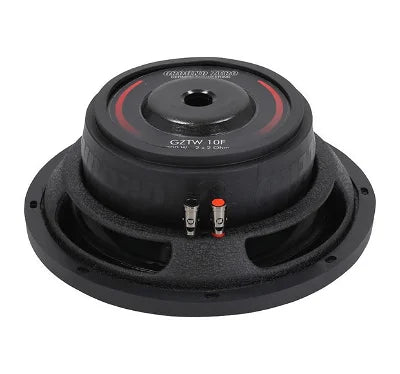

10″ subwoofer FLAT-edition
10″ subwoofer
shallow mount version
Power handling (RMS) 300 W
recommended amplifier 150-500 W
2″ voice coil wounded of copper wire
2x 2 ohm voice coils
fs 38.1 Hz
qts 0.407
vas 27.1 liters
sensitivity 87.5 dB / 1W/1m
x-max 30 mm
IMPP-cone
installation diameter 232 mm
installation depth 88 mm
recommended sealed enclosure 24 liters
recommended ported enclosure 40 liters ( tuned to 33 Hz )
